Unit 3 of the PECTAA Class 12 Mathematics book (Punjab boards, 2026-27) is integration, differentiation run backwards. It builds a full set of techniques and then uses them for areas, volumes and real problems in physics, economics and medicine. It is the longest unit in the book and the one the rest of the course leans on most. The solved notes PDF is below.

Source: the exercises in this PDF are from the Punjab Curriculum and Textbook Board (PCTB) textbook for Class 12 Mathematics. The questions belong to the publisher. The solutions and explanations were written by Muhammad Sharjeel. Sources and copyright.

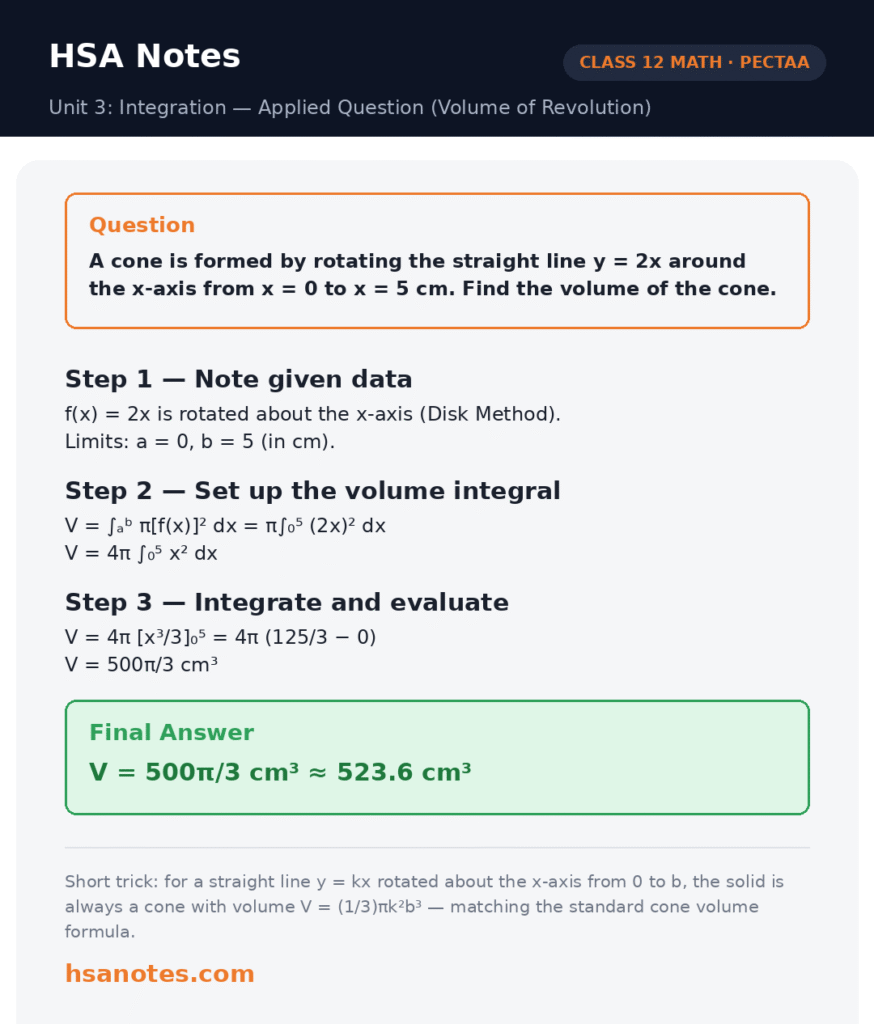

HSA Notes solved question card Class 12 Math PECTAA, Unit 3 Integration, Applied problem: a cone formed by rotating the line y = 2x around the x-axis, solved step by step using the disk method to find the volume, final answer V = 500π/3 cm³ ≈ 523.6 cm³

3.1 Antiderivatives

An antiderivative of f is any function whose derivative is f. Learn the basic rules (constant multiple, sum, power rule, linear substitution) and the table of standard integrals, which is just the differentiation table read backwards.

3.2 Substitution

The chain rule in reverse: set u = g(x) so that the integral becomes a standard one. Sometimes you need to adjust a constant so that du matches what is in the integrand.

3.3 Trigonometric substitution

  • √(a² − x²): put x = a sin θ.
  • √(a² + x²): put x = a tan θ.
  • √(x² − a²): put x = a sec θ.

3.4 Integration by parts

∫u dv = uv − ∫v du, from the product rule. Choose u with the ILATE order (inverse trig, log, algebraic, trig, exponential). In some integrals the original integral comes back on the right; move it across and solve.

3.5 Partial fractions

Split a rational function into simpler fractions, then integrate each one. There are four cases: different linear factors, repeated linear factors, irreducible quadratic factors, and repeated quadratic factors. Spot the case before you set up the constants.

3.6 The definite integral

The Fundamental Theorems of Calculus link the definite integral to antiderivatives. The properties (reversing the limits, splitting the interval, the even/odd rules, symmetry substitutions) often save a lot of work.

3.7 Applications

Area under a curve and between two curves; consumer and producer surplus; volumes of revolution; moment of inertia; distance from velocity; population growth; the average value of a function; and drug exposure measured as the area under a concentration curve.

Worked example

Find the area between y = 13 − x² and y = 2x + 5. They meet where x² + 2x − 8 = 0, so x = −4 and x = 2. The parabola is on top, so area = ∫₋₄² (8 − 2x − x²) dx = [8x − x² − x³/3] from −4 to 2 = 28/3 + 80/3 = 36 square units.

How to study this unit

  • Learn the standard table thoroughly before mixed questions.
  • Look at the integrand first: a square root of a² ± x² means trig substitution; a product means parts; a rational function means partial fractions.
  • Sketch the region and find intersection points before any area or volume question.

Practice questions

Our own revision questions, separate from the textbook. Answers are at the end.

  • 1. ∫(5x³ + 10x + 20) dx
  • 2. ∫x(7x² + 8)⁹ dx
  • 3. ∫ln x dx
  • 4. ∫(3x + 5)/(x² + 4x + 3) dx
  • 5. Volume when the region under y = x² from 0 to 2 is rotated about the x-axis.
  • 6. Demand p = 30 − 2x − x², supply p = −6 + 4x + x². Find the consumer and producer surplus.
  • 7. a(t) = 12t − 36 and v(0) = 30 m/s. Find the total distance travelled for 1 ≤ t ≤ 6.
  • 8. C(t) = 8e⁻⁰·¹⁵ᵗ mg/L. Is the AUC from 0 to 6 hours at least 40 mg·h/L?

Answers: 1. 5x⁴/4 + 5x² + 20x + C. 2. (7x² + 8)¹⁰/140 + C. 3. x ln x − x + C. 4. ln|x + 1| + 2 ln|x + 3| + C. 5. 32π/5. 6. Equilibrium at x = 3, p = 15; CS = 27, PS = 36. 7. v = 6(t − 1)(t − 5); distance = 64 + 14 = 78 m. 8. (8/0.15)(1 − e⁻⁰·⁹) ≈ 31.6, so no.
